Variants

Item no.
Variation
A
B
C
D
Price
Quantity
MF0405.020.016
1/2" x 3/8"
20,5
21
3/8" (16,66mm)
1/2" (20,96mm)
2,13 €*
pc:
MF0405.025.020
3/4" x 1/2"
24
24,5
1/2" (20,96mm)
3/4" (26,44mm)
3,39 €*
pc:
MF0405.032.020
1" x 1/2"
27
26,5
1/2" (20,96mm)
1" (33,25mm)
4,24 €*
pc:
MF0405.032.025
1" x 3/4"
31
29
3/4" (26,44mm)
1" (33,25mm)
4,83 €*
pc:
MF0405.040.032
1 1/4" x 1"
34,5
33
1" (33,25mm)
1 1/4" (41,91mm)
10,47 €*
pc:
MF0405.050.032
1 1/2" x 1"
36,5
34
1" (33,25mm)
1 1/2" (47,80mm)
11,97 €*
pc:
MF0405.050.040
1 1/2" x 1 1/4"
41
37
1 1/4" (41,91mm)
1 1/2" (47,80mm)
14,79 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

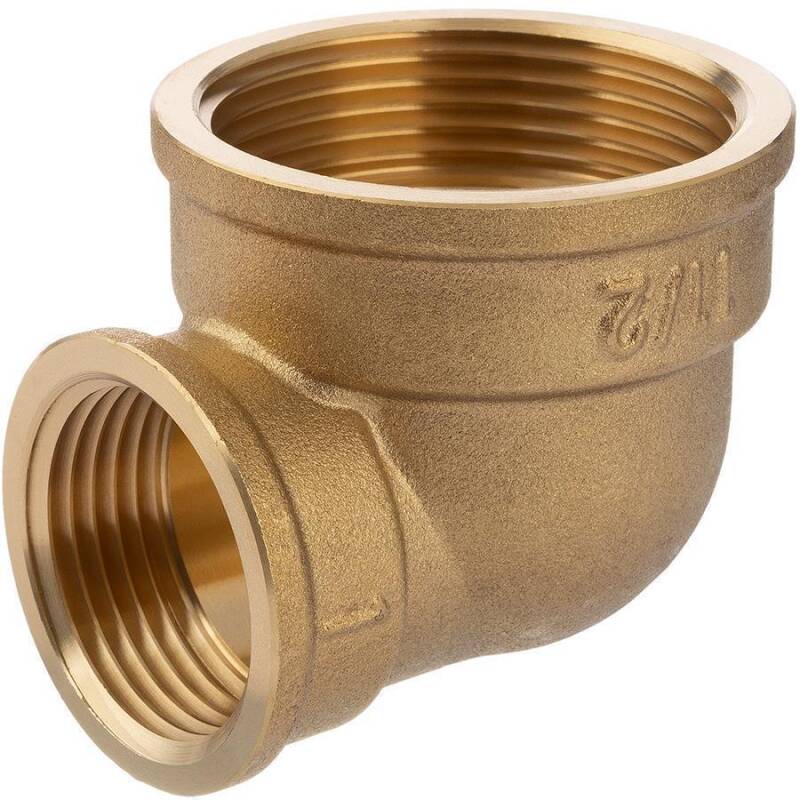

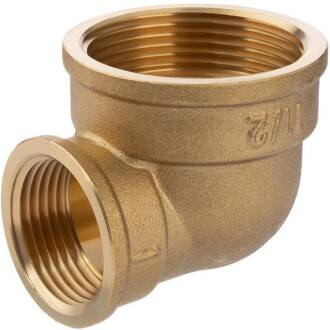

Messing Winkel 90° reduziert, 2fach Innengewinde

Anschluss:
2fach Innengewinde
Gewinde:
BSP Rohrgewinde ISO 228-1, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
-20°C bis 150°C
Arbeitsdruck (PN):
max. 16 bar bei Medium Wasser
Material:
Messingkörper UNE EN 12165
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
