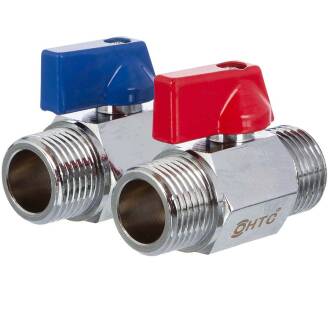

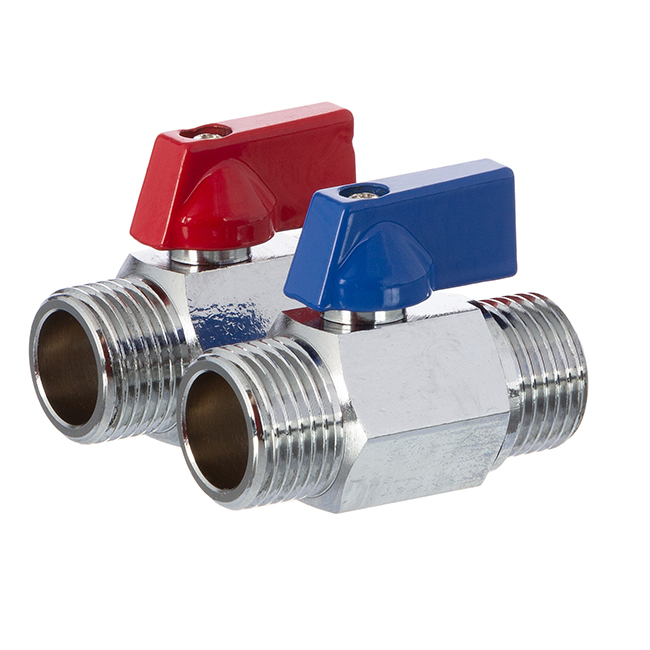

Brass mini ball valve 2-fold external thread

SKU: MA0010
Auswahl Steuerzone / Lieferland
from
3,56 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately

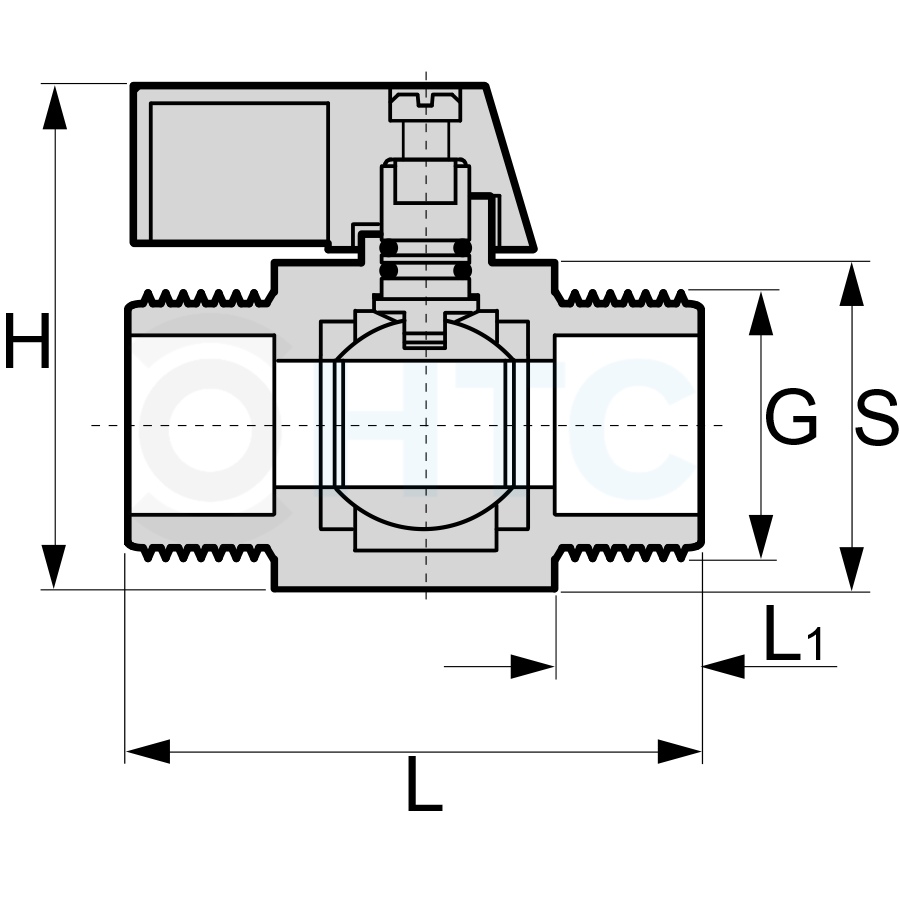

   Variants

Product picture
Item no.
Variation
DN
G
H
L
L1
S
Price
Quantity
Brass mini ball valve 2-fold external thread
MA0010.000.B12
1/4"
7
1/4" (13,16mm)
37
40
8,5
20
3,56 €*
pc.:
Brass mini ball valve 2-fold external thread
MA0010.000.B16
3/8"
7,5
3/8" (16,66mm)
37
42
9
20
3,56 €*
pc.:
Brass mini ball valve 2-fold external thread
MA0010.000.B20
1/2"
10
1/2" (20,96mm)
41
51
10,5
24
4,63 €*
pc.:
Brass mini ball valve 2-fold external thread
MA0010.000.B25
3/4"
14
3/4" (26,44mm)
47
58,5
12
30
8,28 €*
pc.:
Brass mini ball valve 2-fold external thread
MA0010.000.R12
1/4"
7
1/4" (13,16mm)
37
40
8,5
20
3,56 €*
pc.:
Brass mini ball valve 2-fold external thread
MA0010.000.R16
3/8"
7,5
3/8" (16,66mm)
37
42
9
20
3,56 €*
pc.:
Brass mini ball valve 2-fold external thread
MA0010.000.R20
1/2"
10
1/2" (20,96mm)
41
51
10,5
24
4,63 €*
pc.:
Brass mini ball valve 2-fold external thread
MA0010.000.R25
3/4"
14
3/4" (26,44mm)
47
58,5
12
30
8,28 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

Mini-Kugelhahn 2fach Aussengewinde

Anschluss:
2fach Aussengewinde
Material:
Messing CW617N (für Trinkwasserleitungen verwendbar), verchromt
Gewinde:
BSP Rohrgewinde ISO 228/1
Einsatzgebiet:
geeignet für Druckluft, Kalt- und Warmwasser
Temperatur:
-20°C bis 80°C
Arbeitsdruck (PN):
8 bar bei 80°C | 16 bar bei 20°
Kugelsitz:
PTFE
Griff:
Aluminium
  • geeignet für Druckluft, Kalt- und Warmwasser
  • 80°C max. 8 bar
  • 20°C max. 16 bar
  • min. Temperatur -20°C
  • Gewinde gemäß ISO 228/1 (DIN 259)
  • Kugelsitz PTFE
  • Griff Aluminium
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
