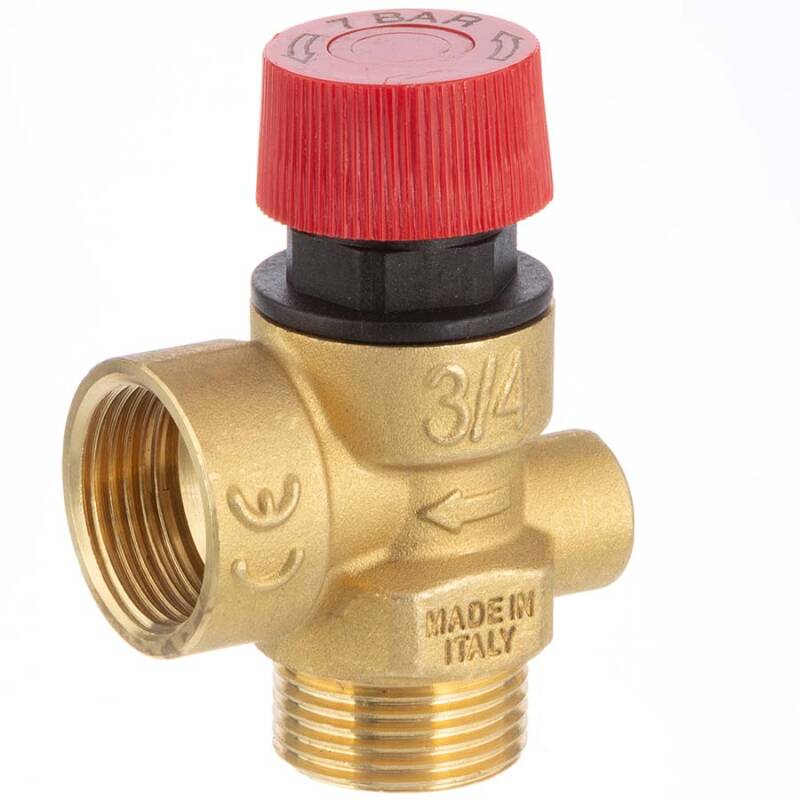

Brass male/female threaded membrane safety valve

SKU: MA0041
Auswahl Steuerzone / Lieferland
from
8,18 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
bar
Price
Quantity
MA0041.003.020
1/2" (20,95mm)
3
8,18 €*
pc.:
MA0041.007.020
1/2" (20,95mm)
7
8,18 €*
pc.:
MA0041.003.025
3/4" (26,44mm)
3
13,85 €*
pc.:
MA0041.007.025
3/4" (26,44mm)
7
13,85 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

Messing Membran Sicherheitsventil, Aussen- x Innengewinde

Membran Sicherheitsventil als letzte Sicherheitsinstanz zum Öffnen des geschlossenen Kreislaufes automatisch und mechanisch bei Erreichen der vorher eingestellten Druckbelastung

Anschluss:
Aussengewinde- x Innengewinde DIN 259
Gewinde:
BSP Rohrgewinde G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, nicht selbstdichtend, Abdichtung mit Hanf, Dichtpaste o.ä.
Einsatzgebiet:
geschlossenes Warmwassersystem in Verbindung eines Druckausdehnungsgefäßes
Temperatur:
max. 110°C
Ansprechdruck (PN):
3,0 oder 7,0 bar
Material:
Pressmessing CW 6117N
DIN:
Dimensionen konform ISO 4144, Anschlussgewinde nach ISO 7/1 (DIN 2999 / BS 21)
Farbe:
Messing verchromt, Drehkappe Kuststoff Farbe: Rot
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
