Variants

Item no.
Variation
D
DN
I-ø hose
Price
Quantity
MF0803.020.013
1/2" x 13mm
13  (13,5/12,5)
10
13 (1/2" Schlauch)
1,89 €*
pc:
MF0803.025.013
3/4" x 13mm
13  (13,5/12,5)
10
13 (1/2" Schlauch)
2,31 €*
pc:
MF0803.025.016
3/4" x 16mm
16  (15,5/14,5)
12
16mm (5/8" Schlauch)
2,31 €*
pc:
MF0803.025.019
3/4" x 19mm
19  (19,5/18,5)
16,5
19 (3/4" Schlauch)
2,39 €*
pc:
MF0803.032.013
1" x 13mm
13  (13,5/12,5)
10
13 (1/2" Schlauch)
3,44 €*
pc:
MF0803.032.019
1" x 19mm
19  (19,5/18,5)
16
19 (3/4" Schlauch)
3,74 €*
pc:
MF0803.032.025
1" x 25mm
25  (25/24)
22
25 (1" Schlauch)
3,93 €*
pc:
MF0803.040.025
1 1/4" x 25mm
25  (25,5/24)
22
25 (1" Schlauch)
7,09 €*
pc:
MF0803.040.032
1 1/4" x 32mm
32  (33/31)
28
32 (1 1/4" Schlauch)
6,79 €*
pc:
MF0803.050.040
1 1/2" x 40mm
40  (40/37,5)
34
40
14,20 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

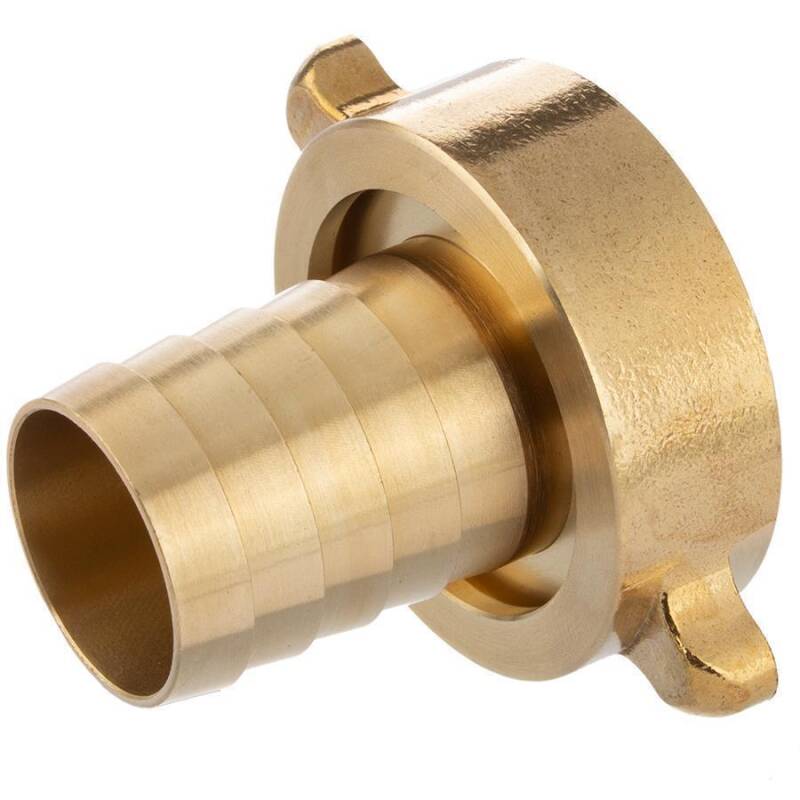

Messing Schlauchtülle Überwurfmutter Innengewinde x Tülle

Anschluss:
Überwurfmutter Innengewinde x Tülle
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit innenliegender Flachdichtung gegen flachdichtendes Aussengewinde
Arbeitsdruck (PN):
PN 10 bei 20°C
Material:
Messing MS 58 | CW614N
DIN:
incl. Flachdichtung EPDM
Farbe:
Messing
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
