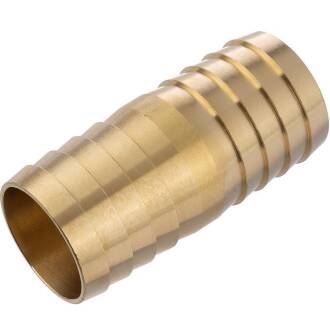

Brass hose connector

SKU: MF0804
Auswahl Steuerzone / Lieferland
from
0,69 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
Der rippenförmige Aufbau einer Tülle ermöglicht einen besseren Halt des Schlauches. Die einzelne Rippe ist an der Oberkante leicht übermaßig und an der niedrigsten Stelle leicht untermaßig.
  • Available immediately
   Variants

Item no.
Variation
Total length
I-ø hose
Price
Quantity
MF0804.000.006
2fach 6mm
39
6
0,69 €*
pc.:
MF0804.000.008
2fach 8mm
41
8
0,90 €*
pc.:
MF0804.000.010
2fach 10mm
43
10
1,07 €*
pc.:
MF0804.000.013
2fach 12,5mm
48
12,5 (1/2" Schlauch)
1,43 €*
pc.:
MF0804.000.019
2fach 19mm
55
19 (3/4" Schlauch)
2,25 €*
pc.:
MF0804.000.025
2fach 25mm
55
25 (1" Schlauch)
2,61 €*
pc.:
MF0804.000.032
2fach 32mm
55
32 (1 1/4" Schlauch)
5,20 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

Messing Schlauchverbinder gerade - 2fach Tülle


Anschluss:
2fach Tülle
Arbeitsdruck (PN):
PN 10 bei 20°C
Material:
Messing MS 58 | CW614N
Farbe:
Messing
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
