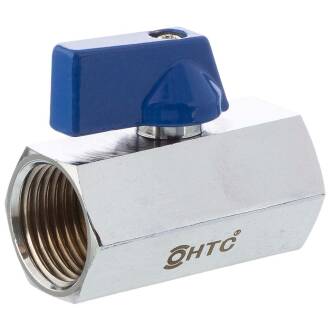

Brass female threaded mini ball valve

SKU: MA0008
Auswahl Steuerzone / Lieferland
from
3,38 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
DN
G
H
L
L1
L2
L3
Price
Quantity
Brass female threaded mini ball valve
MA0008.000.B12
1/4"
8
1/4" (13,16mm)
27
40
8,5
22,8
11,5
3,38 €*
pc:
Brass female threaded mini ball valve
MA0008.000.B16
3/8"
8
3/8" (16,66mm)
27
40
8,5
23
12,5
3,47 €*
pc:
Brass female threaded mini ball valve
MA0008.000.B20
1/2"
10
1/2" (20,96mm)
28,5
47
11,5
23
12,5
4,05 €*
pc:
Brass female threaded mini ball valve
MA0008.000.B25
3/4"
14
3/4" (26,44mm)
33
54
13
22
13
8,04 €*
pc:
Brass female threaded mini ball valve
MA0008.000.R25
3/4"
14
3/4" (26,44mm)
33
54
13
22
13
8,04 €*
pc:
Brass female threaded mini ball valve Red, 1/4"
MA0008.000.R12
1/4"
8
1/4" (13,16mm)
27
40
8,5
22,8
11,5
3,38 €*
pc:
Brass female threaded mini ball valve Red, 3/8"
MA0008.000.R16
3/8"
8
3/8" (16,66mm)
27
40
8,5
22,8
12,5
3,47 €*
pc:
Brass female threaded mini ball valve Red, 1/2"
MA0008.000.R20
1/2"
10
1/2" (20,96mm)
28,5
47
11,5
22,8
12,5
4,05 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

Messing Mini-Kugelhahn 2fach Innengewinde

Anschluss:
2fach Innengewinde
Material:
Messing CW617N (für Trinkwasserleitungen verwendbar), verchromt
Gewinde:
BSP Rohrgewinde ISO 228/1
Einsatzgebiet:
geeignet für Druckluft, Kalt- und Warmwasser
Temperatur:
-20°C bis 80°C
Arbeitsdruck (PN):
8 bar bei 80°C | 16 bar bei 20°
Kugelsitz:
PTFE
Griff:
Aluminium
  • geeignet für Druckluft, Kalt- und Warmwasser
  • 80°C max. 8 bar
  • 20°C max. 16 bar
  • min. Temperatur -20°C
  • Gewinde gemäß ISO 228/1 (DIN 259)
  • Kugelsitz PTFE
  • Griff Aluminium
