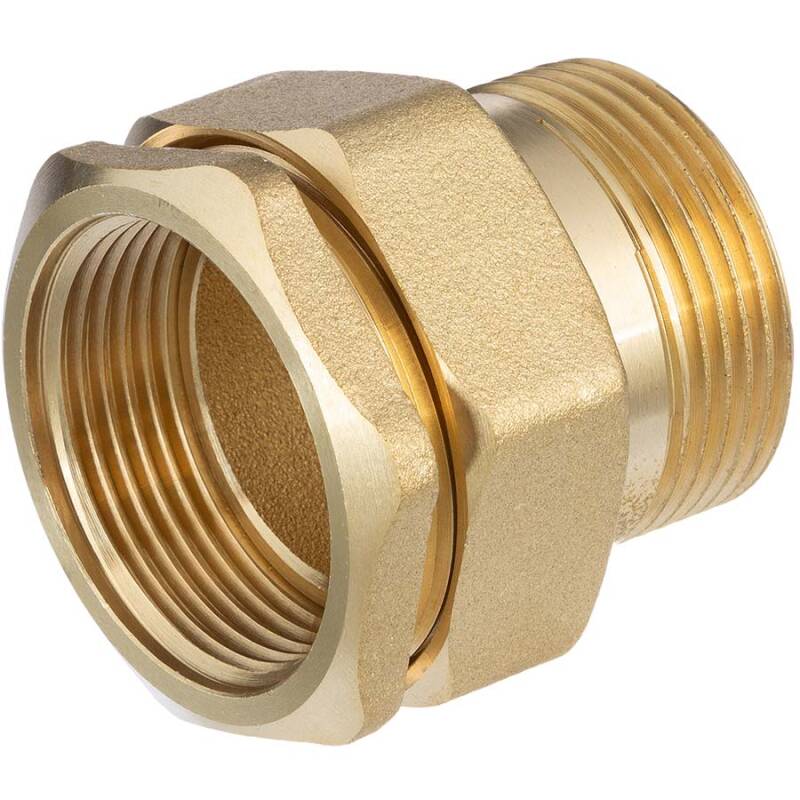

Brass female/male threaded union - conical sealing

SKU: MF0607
Auswahl Steuerzone / Lieferland
from
5,94 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
G
L
S
Price
Quantity
MF0607.020.020
1/2"
1/2" (20,96mm)
42,5
29
5,94 €*
pc:
MF0607.025.025
3/4"
3/4" (26,44mm)
44
36
8,38 €*
pc:
MF0607.032.032
1"
1" (33,25mm)
55,5
45
13,21 €*
pc:
MF0607.040.040
1 1/4"
1 1/4" (41,91mm)
52,5
51
19,14 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

Messing Verschraubung, Innengewinde x Aussengewinde, konisch dichtend

Anschluss:
Innen- x Aussengewinde
Material:
Messing CW61N (für Trinkwasserleitungen verwendbar)
Gewinde:
BSP Rohrgewinde ISO 228-1, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
-20°C bis 150°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
