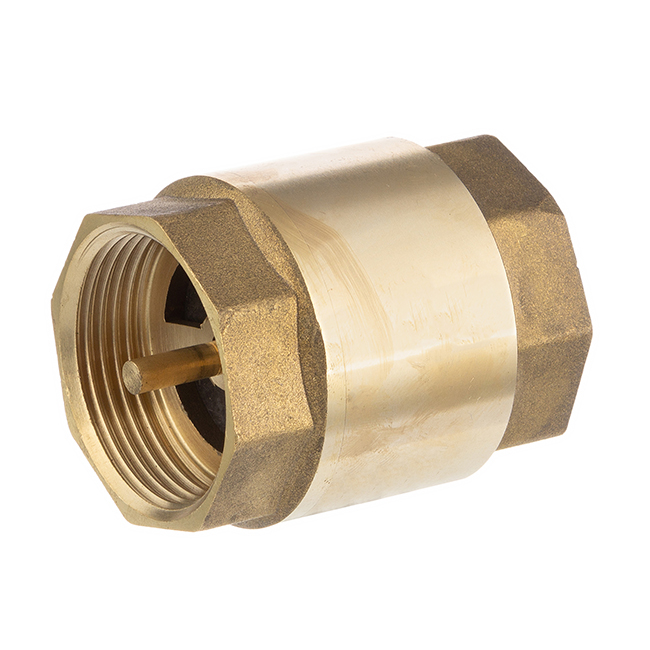

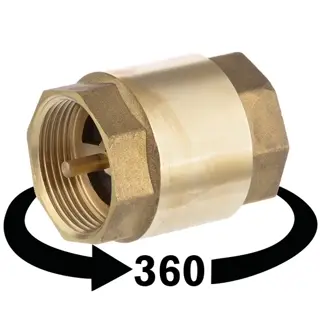

Brass check valve type "York" with brass lock, female thread

SKU: MAME11
Auswahl Steuerzone / Lieferland
from
4,15 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
D
d
G
L
t
PN
Price
Quantity
MAME11.000.020
1/2"
33
17
1/2" (20,95mm)
46
11
20
4,15 €*
pc.:
MAME11.000.025
3/4"
42,5
22
3/4" (26,44mm)
56
11
20
5,65 €*
MAME11.000.032
1"
46,5
28
1" (33,25mm)
58,5
13
20
8,77 €*
MAME11.000.040
1 1/4"
56,5
35
1 1/4" (41,91mm)
62,5
12
20
12,59 €*
pc.:
MAME11.000.050
1 1/2"
65
40
1 1/2" (47,81mm)
70,5
14
20
18,22 €*
pc.:
MAME11.000.063
2"
82
52
2" (59,61mm)
81
18
20
20,38 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

Messing Rückschlagventil Typ YORK Messingverschluss, 2fach Innengewinde

Anschluss:
2fach Innengewinde DIN 259
Material:
Messing CW61N (für Trinkwasserleitungen verwendbar)
Gewinde:
BSP Rohrgewinde G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, nicht selbstdichtend, Abdichtung mit Hanf, Dichtpaste o.ä.
Einsatzgebiet:
geeignet für Kalt- und Warmwasser
Temperatur:
0°C bis 100°C
Arbeitsdruck (PN):
PN 20 bei 20°C Medium Wasser
Farbe:
Messing

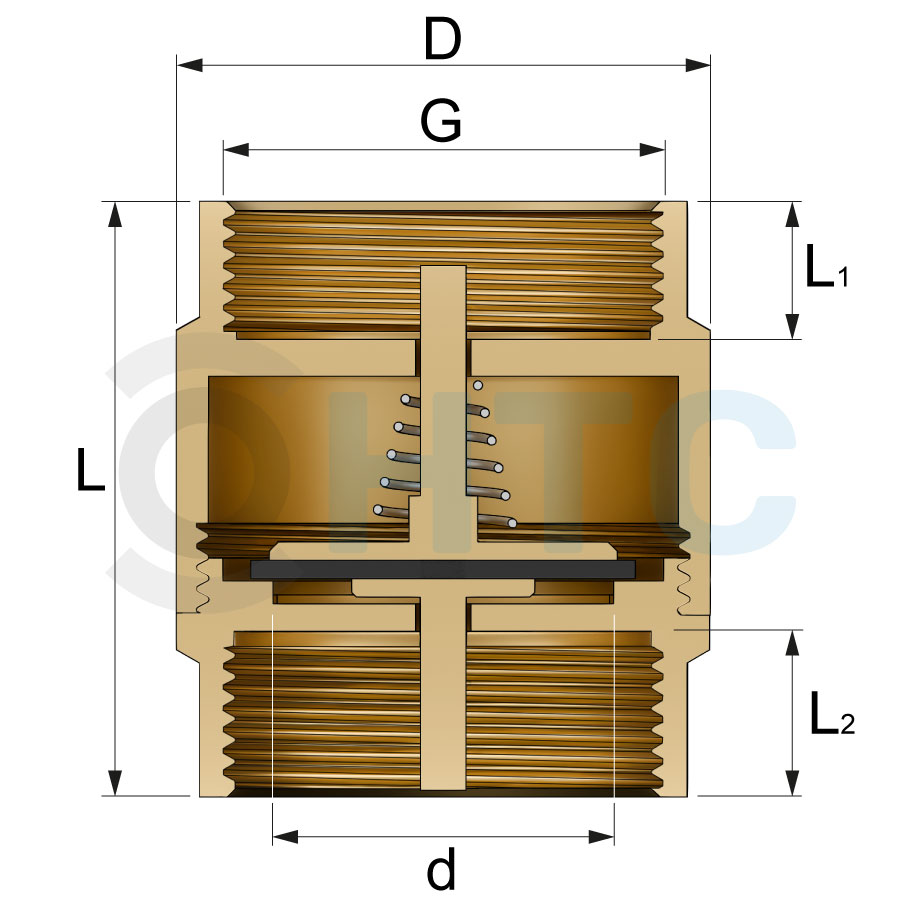

Rückschlagventil
Nr.
Teil
Material
1
Körper
Messing
2
Gegenstück
Messing
3-1
Kern
Messing
4
Dichtung
NBR
3-2
Scheibe
Messing
5
Feder
V2A

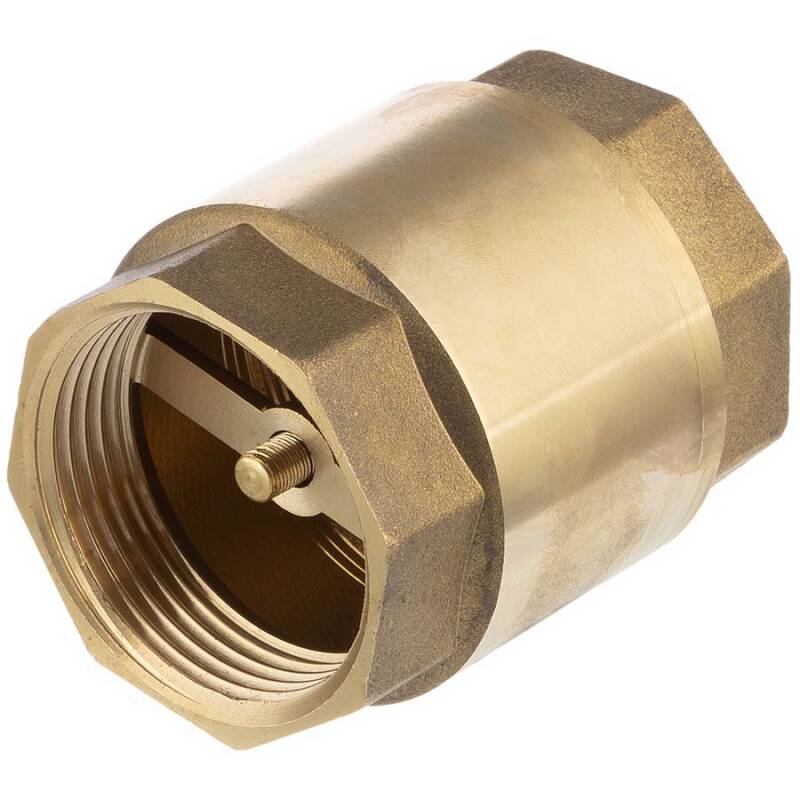

Rückschlagventil Typ YORK mit Messingverschluss

Die professionelle Variante des Rückschlagventil Typ YORK besitzt den Verschlussträger und Führungsstössel aus Messing.

Rückschlagventil Typ YORK Detail Messing
