Variants

Product picture
Item no.
Variation
Sector
Casting distance
Price
Quantity
Adjustable or fixed nozzle 0° - 360°, 3,0m
BR0003.360.030
0° - 360°, 3,0m
0° - 360°
2,8bar / 3,0m
1,49 €*
pc.:

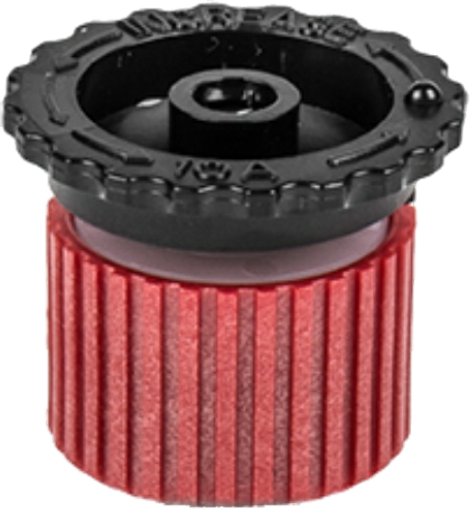

Adjustable or fixed nozzle 0° - 360°, 3,6m
BR0003.360.036
0° - 360°, 3,6m
0° - 360°
2,8bar / 3,6m
1,49 €*

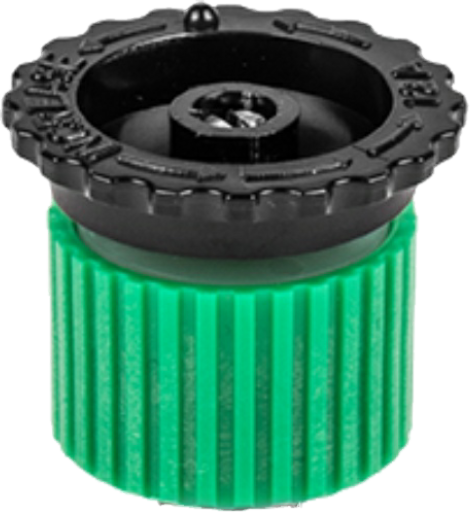

Adjustable or fixed nozzle 0° - 360°, 4,0m
BR0003.360.040
0° - 360°, 4,0m
0° - 360°
2,8bar / 4,0m
1,49 €*
pc.:

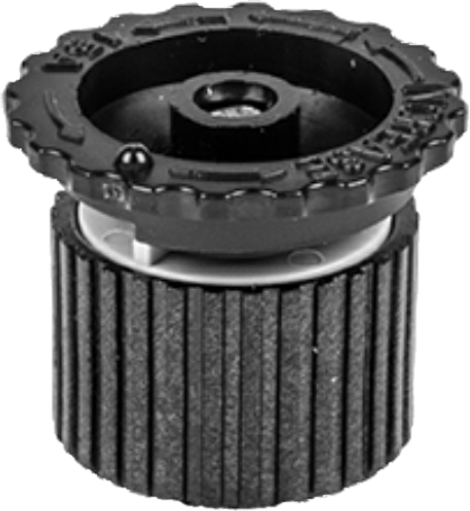

Adjustable or fixed nozzle 0° - 360°, 4,9m
BR0003.360.049
0° - 360°, 4,9m
0° - 360°
2,8bar / 4,9m
1,49 €*
pc.:

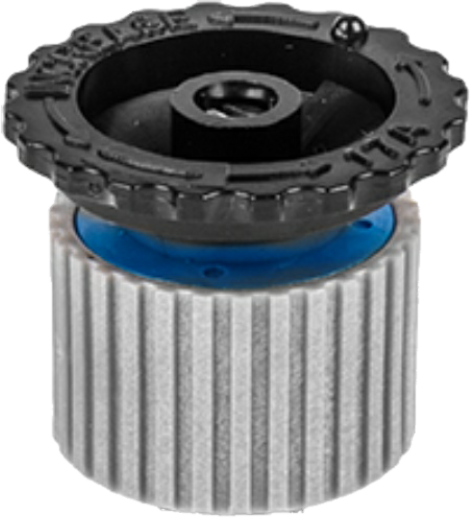

Adjustable or fixed nozzle 0° - 360°, 5,2m
BR0003.360.052
0° - 360°, 5,2m
0° - 360°
2,8bar / 5,2m
1,49 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

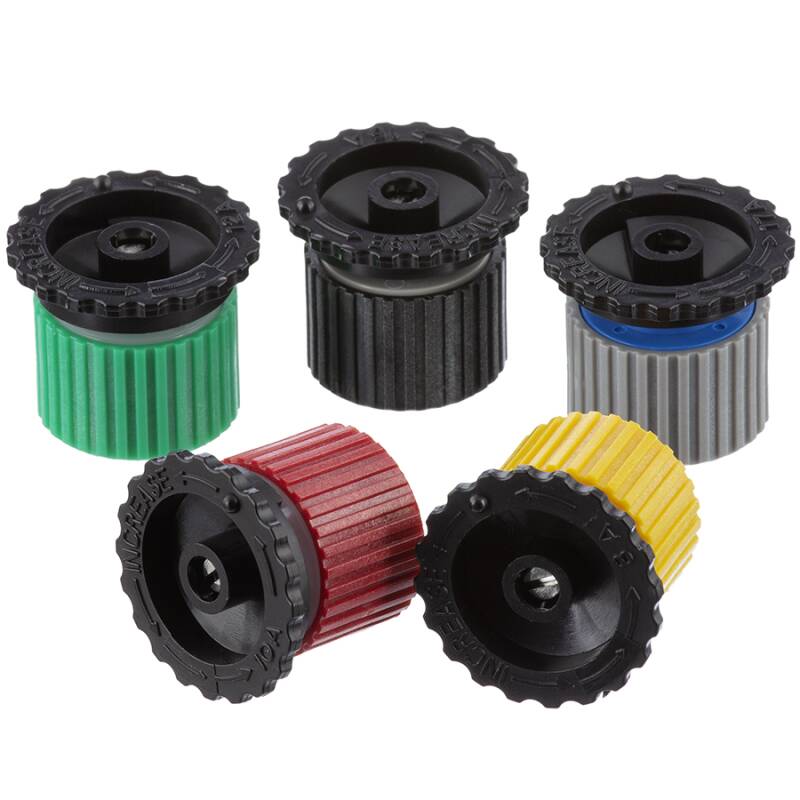

Düsen einstellbar oder fester Sektor

kompatibel zu allen Hunter, Rainbird Versenkregnern


einstellbare Düse 0°-360°, Wufweite 3,0m
 Sektor  Druck bar  Effizienz (l/min)  Radius m
 45° - 360°  1,4  1,5 - 5,0  2,1
 45° - 360°  2,0  1,2 - 6,9  2,4
 45° - 360°  2,8  1,3 - 7,9  3,0

einstellbare Düse 0°-360°, Wufweite 3,0m
 Sektor  Druck bar  Effizienz (l/min)  Radius m
 45° - 360°  1,4  1,2 - 7,2  2,7
 45° - 360°  2,0  1,5 - 9,0  3,0
 45° - 360°  2,8  1,7 - 10,3  3,6

einstellbare Düse 0°-360°, Wufweite 3,0m
 Sektor  Druck bar  Effizienz (l/min)  Radius m
 45° - 360°  1,4  1,2 - 8,2  3,3
 45° - 360°  2,0  1,5 - 10,4  4,0
 45° - 360°  2,8  1,8 - 12,1  4,0

einstellbare Düse 0°-360°, Wufweite 3,0m
 Sektor  Druck bar  Effizienz (l/min)  Radius m
 45° - 360°  1,4  1,3 - 8,8  4,2
 45° - 360°  2,0  1,6 - 10,8  4,6
 45° - 360°  2,8  1,8 - 12,3  4,9

einstellbare Düse 0°-360°, Wufweite 3,0m
 Sektor  Druck bar  Effizienz (l/min)  Radius m
 45° - 360°  1,4  1,7 - 9,4  4,6
 45° - 360°  2,0  2,0 - 11,3  5,2
 45° - 360°  2,8  2,3 - 12,7  5,2
