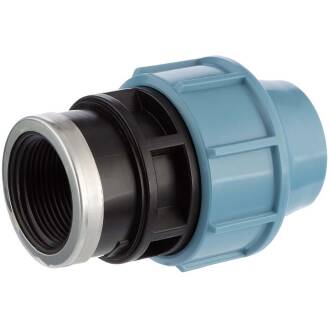

Adapter compression fitting x female thread, DVGW

SKU: PP0102
Auswahl Steuerzone / Lieferland
from
1,67 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
B
d
G
L
L1
A2 ss ring
Pipe O-ø
Price
Quantity
Adapter compression fitting x female thread, DVGW 20mm x 1/2"
PP0102.020.020
20mm x 1/2"
46
20
1/2" (20,96mm)
88
15
NEIN
20
1,67 €*
pc.:
Adapter compression fitting x female thread, DVGW 20mm x 3/4"
PP0102.020.025
20mm x 3/4"
46
20
3/4" (26,44mm)
80
18
NEIN
20
1,67 €*
pc.:
Adapter compression fitting x female thread, DVGW 20mm x 1"
PP0102.020.032
20mm x 1"
46
20
1" (33,25mm)
82
18
NEIN
20
1,76 €*
pc.:
Adapter compression fitting x female thread, DVGW 25 x 1/2"
PP0102.025.020
25mm x 1/2"
55
25
1/2" (20,96mm)
84
17
NEIN
25
1,96 €*
pc.:
Adapter compression fitting x female thread, DVGW 25mm x 3/4"
PP0102.025.025
25mm x 3/4"
55
25
3/4" (26,44mm)
84
18
NEIN
25
1,96 €*
pc.:
Adapter compression fitting x female thread, DVGW 25mm x 1"
PP0102.025.032
25mm x 1"
55
25
1" (33,25mm)
88
19
NEIN
25
1,96 €*
pc.:
Adapter compression fitting x female thread, DVGW 32mm x 1/2"
PP0102.032.020
32mm x 1/2"
63
32
1/2" (20,96mm)
94
16
NEIN
32
2,48 €*
pc.:
Adapter compression fitting x female thread, DVGW 32mm x 3/4"
PP0102.032.025
32mm x 3/4"
63
32
3/4" (26,44mm)
95
16
NEIN
32
2,48 €*
pc.:
Adapter compression fitting x female thread, DVGW 32mm x 1"
PP0102.032.032
32mm x 1"
63
32
1" (33,25mm)
95
18
NEIN
32
2,48 €*
pc.:
Adapter compression fitting x female thread, DVGW 32mm x 1 1/4"
PP0102.032.040
32mm x 1 1/4"
63
32
1 1/4" (41,91mm)
102
17
JA
32
3,43 €*
pc.:
Adapter compression fitting x female thread, DVGW 40mm x 1"
PP0102.040.032
40mm x 1"
80
40
1" (33,25mm)
109
19
NEIN
40
3,84 €*
pc.:
Adapter compression fitting x female thread, DVGW 40mm x 1 1/4"
PP0102.040.040
40mm x 1 1/4"
80
40
1 1/4" (41,91mm)
114
20
JA
40
3,84 €*
pc.:
Adapter compression fitting x female thread, DVGW 40mm x 1 1/2"
PP0102.040.050
40mm x 1 1/2"
80
40
1 1/2" (47,80mm)
113
21
JA
40
3,84 €*
pc.:
Adapter compression fitting x female thread, DVGW 50mm x 1 1/4"
PP0102.050.040
50mm x 1 1/4"
96
50
1 1/4" (41,91mm)
143
20
JA
50
5,51 €*
pc.:
Adapter compression fitting x female thread, DVGW 50mm x 1 1/2"
PP0102.050.050
50mm x 1 1/2"
96
50
1 1/2" (47,80mm)
144
20
JA
50
5,51 €*
pc.:
Adapter compression fitting x female thread, DVGW 50mm x 2"
PP0102.050.063
50mm x 2"
96
50
2" (59,61mm)
149
24
JA
50
5,51 €*
pc.:
Adapter compression fitting x female thread, DVGW 63mm x 1 1/4"
PP0102.063.040
63mm x 1 1/4"
115
63
1 1/4" (41,91mm)
155
23
JA
63
7,77 €*
pc.:
Adapter compression fitting x female thread, DVGW 63mm x 1 1/2"
PP0102.063.050
63mm x 1 1/2"
115
63
1 1/2" (47,80mm)
155
23
JA
63
7,77 €*
pc.:
Adapter compression fitting x female thread, DVGW 63mm x 2"
PP0102.063.063
63mm x 2"
115
63
2" (59,61mm)
163
26
JA
63
7,77 €*
pc.:
Adapter compression fitting x female thread, DVGW
PP0102.063.075
63mm x 2 1/2"
116
63
2 1/2" (75,18mm)
163
32
JA
63
7,77 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PP Klemmringverschraubung Klemme x Innengewinde

Klemmringverschraubung Übergangsverschraubung, DVGW geprüft für den Trinkwassereinsatz

Anschluss:
Klemme x Innengewinde Verstärkungsring siehe "V2A Ring"
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 60°C konstant, kurzzeitig 80°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C
Material:
PP Polypropylen
O-Ring:
NBR
Farbe:
Schwarz, Überwurfmutter: Blau
Verwendung:
Rohre aus PELD, PEHD, PE40, PE80, PE100

Klemmringverschraubung aus PP Polypropylen - universell einsetzbar

Trinkwasserversorgung:
  • DVGW geprüft für den Trinkwassereinsatz
Bewässerung:
  • Landwirtschaft, Gärtnerei & Gartenbau, Weinberge
Besprengung:
  • Wohngebiete, kommunale Bereiche, Sportplätze, Golfplätze, Reitplätze
Industrie:
  • Wasserversorgung, Versorgung mit korrodierenden Flüssigkeiten, Kabelschutz
Qualität:
  • Wetter, UV- und Ozonbeständig, hervorragende, wartungsfreie Korrosionsbeständigkeit
Preis/Leistung:
  • unser Markenprodukt mit hervorragendem Preis-/Leistungsverhältnis
DOWNLOAD DVGW Prüfzeugnis Unidelta
DOWNLOADKWT Prüfzeugnis Unidelta
DOWNLOADRoHS Bestätigung Unidelta
DOWNLOAD verarbeiten von PP Klemm Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD PP Polypropylen Temperatur-/Druckdiagramm
DOWNLOAD chemische Beständigkeit von Kunststoffen

verarbeiten von UNIDELTA 20mm - 40mm Klemmfittings

verarbeiten von DELTAONE 50mm - 110mm Klemmfittings
