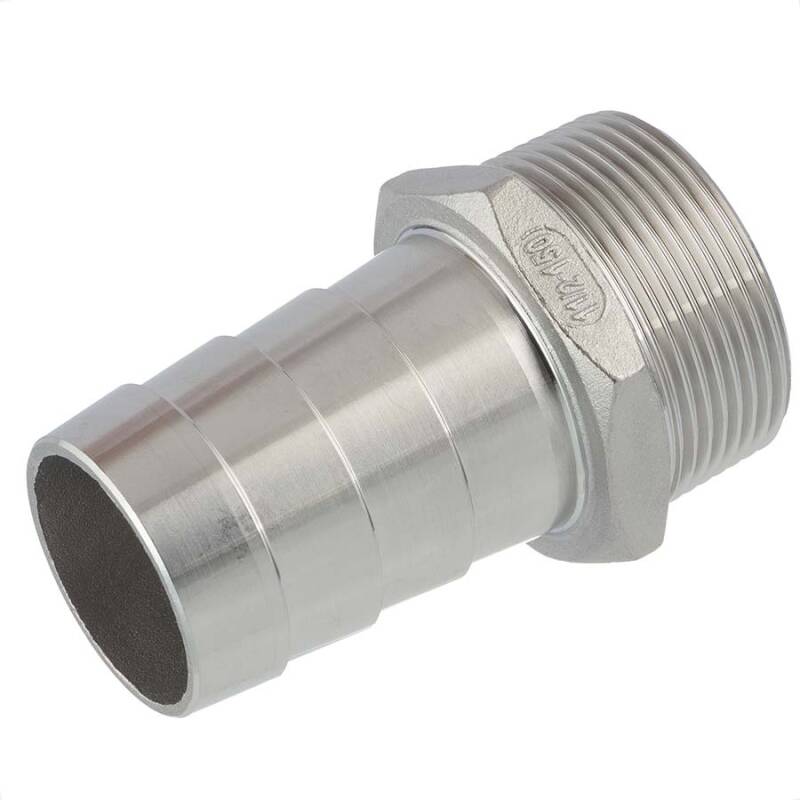

A4 ss male threaded hose tail

SKU: EF0802
Auswahl Steuerzone / Lieferland
from
0,82 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
D
DN
G
L
L1
L2
SW
Price
Quantity
A4 ss male threaded hose tail 1/8" x 6mm
EF0802.009.006
1/8" x 6mm
6  (6/5)
3
R 1/8" (9,73mm)
33
18
8
11
0,82 €*
pc.:
A4 ss male threaded hose tail 1/8" x 8mm
EF0802.009.008
1/8" x 8mm
8  (8/6,5)
5
R 1/8" (9,73mm)
30,5
17
8
11
0,89 €*
pc.:
A4 ss male threaded hose tail 1/8" x 9mm
EF0802.009.009
1/8" x 9mm
9  (9/7,5)
4,5
R 1/8" (9,73mm)
33
18
8
11
0,96 €*
pc.:
A4 ss male threaded hose tail 1/4" x 6mm
EF0802.012.006
1/4" x 6mm
6  (6/5)
3
R 1/4" (13,16mm)
44
25
10
17
1,25 €*
pc.:
A4 ss male threaded hose tail 1/4" x 8mm
EF0802.012.008
1/4" x 8mm
8  (9/7,5)
4,6
R 1/4" (13,16mm)
43
28
8
15
1,25 €*
pc.:
A4 ss male threaded hose tail 1/4" x 9mm
EF0802.012.009
1/4" x 9mm
9  (9/7,5)
5
R 1/4" (13,16mm)
46
27
8
17
1,25 €*
pc.:
A4 ss male threaded hose tail 1/4" x 10mm
EF0802.012.010
1/4" x 10mm
10  (10/8,5)
6
R 1/4" (13,16mm)
46
27
8
17
1,37 €*
pc.:
A4 ss male threaded hose tail 1/4" x 13mm
EF0802.012.013
1/4" x 13mm
13  (13/11,5)
9
R 1/4" (13,16mm)
43
27
8,5
17
1,37 €*
pc.:
A4 ss male threaded hose tail 3/8" x 8mm
EF0802.016.008
3/8" x 8mm
8  (8/6,5)
4
R 3/8" (16,66mm)
48
28
11
19
1,86 €*
pc.:
A4 ss male threaded hose tail 3/8" x 9mm
EF0802.016.009
3/8" x 9mm
9  (9/7,5)
4,7
R 3/8" (16,66mm)
52
32
10
19
1,86 €*
pc.:
A4 ss male threaded hose tail 3/8" x 10mm
EF0802.016.010
3/8" x 10mm
10  (10/8,5)
4,8
R 3/8" (16,66mm)
52
32
10
19
1,86 €*
pc.:
A4 ss male threaded hose tail 3/8" x 13mm
EF0802.016.013
3/8" x 13mm
13  (13/11,5)
6
R 3/8" (16,66mm)
51,5
31
11
18
1,86 €*
A4 ss male threaded hose tail 3/8" x 16mm
EF0802.016.016
3/8" x 16mm
16  (16/14,5)
9,2
R 3/8" (16,66mm)
52
32
11
19
1,86 €*
pc.:
A4 ss male threaded hose tail 1/2" x 9mm
EF0802.020.009
1/2" x 9mm
9  (9/7,5)
5
R 1/2" (20,95mm)
55
32
13
22
2,74 €*
pc.:
A4 ss male threaded hose tail 1/2" x 13mm
EF0802.020.013
1/2" x 13mm
13  (13/11,5)
7,7
R 1/2" (20,95mm)
63,5
40
13
22
2,74 €*
pc.:
A4 ss male threaded hose tail 1/2" x 16mm
EF0802.020.016
1/2" x 16mm
16  (16/15)
12,5
R 1/2" (20,95mm)
49
28
13
22
2,74 €*
A4 ss male threaded hose tail 1/2" x 19mm
EF0802.020.019
1/2" x 19mm
19  (19/17,5)
14,8
R 1/2" (20,95mm)
60
37
13
22
2,82 €*
pc.:
A4 ss male threaded hose tail 1/2" x 20mm
EF0802.020.020
1/2" x 20mm
20  (20/18,5)
15
R 1/2" (20,95mm)
60
37
13
22
3,39 €*
pc.:
A4 ss male threaded hose tail 3/4" x 13mm
EF0802.025.013
3/4" x 13mm
13  (13/11,5)
9
R 3/4" (26,44mm)
64
37
16
29
4,11 €*
pc.:
A4 ss male threaded hose tail 3/4" x 16mm
EF0802.025.016
3/4" x 16mm
16  (16/14,5)
12
R 3/4" (26,44mm)
66
40
15
29
4,11 €*
pc.:
A4 ss male threaded hose tail 3/4" x 19mm
EF0802.025.019
3/4" x 19mm
19  (19/17,5)
15
R 3/4" (26,44mm)
66,5
44
14
28
4,28 €*
pc.:
A4 ss male threaded hose tail 3/4" x 20mm
EF0802.025.020
3/4" x 20mm
20  (20/18,5)
15
R 3/4" (26,44mm)
66,5
44
13
28
4,53 €*
pc.:
A4 ss male threaded hose tail 3/4" x 25mm
EF0802.025.025
3/4" x 25mm
25  (25/23,5)
20
R 3/4" (26,44mm)
70
44
15
29
4,53 €*
pc.:
A4 ss male threaded hose tail 1" x 19mm
EF0802.032.019
1" x 19mm
19  (19/17,5)
15,5
R 1" (33,25mm)
75,5
47
17,5
36
6,75 €*
pc.:
A4 ss male threaded hose tail 1" x 20mm
EF0802.032.020
1" x 20mm
20  (20/18)
16
R 1" (33,25mm)
75
47
17
36
6,75 €*
pc.:
A4 ss male threaded hose tail 1" x 25mm
EF0802.032.025
1" x 25mm
25  (25/23)
20
R 1" (33,25mm)
75
46
16
36
6,78 €*
pc.:
A4 ss male threaded hose tail 1" x 32mm
EF0802.032.032
1" x 32mm
32  (32/30)
25
R 1" (33,25mm)
81
52
21
41
6,93 €*
pc.:
A4 ss male threaded hose tail 1 1/4" x 25mm
EF0802.040.025
1 1/4" x 25mm
25  (25/23,5)
20
R 1 1/4" (41,91mm)
70
42
19
44
11,10 €*
pc.:
A4 ss male threaded hose tail 1 1/4" x 32mm
EF0802.040.032
1 1/4" x 32mm
32  (33/31)
27,5
R 1 1/4" (41,91mm)
80
52
17
44
11,17 €*
pc.:
A4 ss male threaded hose tail 1 1/4" x 38mm
EF0802.040.038
1 1/4" x 38mm
38  (38/35,5)
32
R 1 1/4" (41,91mm)
80,5
49
19
44
11,21 €*
pc.:
A4 ss male threaded hose tail 1 1/4" x 40mm
EF0802.040.040
1 1/4" x 40mm
40  (40/37,5)
34
R 1 1/4" (41,91mm)
80,5
48,5
20
44
11,21 €*
pc.:
A4 ss male threaded hose tail 1 1/2" x 32mm
EF0802.050.032
1 1/2" x 32mm
32  (32/30)
25
R 1 1/2" (47,81mm)
87
54
19
51
11,75 €*
pc.:
A4 ss male threaded hose tail 1 1/2" x 38mm
EF0802.050.038
1 1/2" x 38mm
38  (38/36)
33
R 1 1/2" (47,91mm)
86
55
17
50
11,75 €*
pc.:
A4 ss male threaded hose tail 1 1/2" x 40mm
EF0802.050.040
1 1/2" x 40mm
40  (40/38)
33
R 1 1/2" (47,81mm)
86
55
19
50
11,78 €*
pc.:
A4 ss male threaded hose tail 1 1/2" x 51mm
EF0802.050.050
1 1/2" x 51mm
51  (51/49)
40
R 1 1/2" (47,81mm)
83
55
19
53
11,89 €*
pc.:
A4 ss male threaded hose tail 2" x 51mm
EF0802.063.050
2" x 51mm
51  (52/50)
45
R 2" (59,61mm)
92,5
59
22
62
21,31 €*
A4 ss male threaded hose tail 2" x 60mm
EF0802.063.060
2" x 60mm
60  (60/58)
51
R 2" (59,61mm)
94
59
23
62
21,49 €*
pc.:
A4 ss male threaded hose tail 2" x 63mm
EF0802.063.063
2" x 63mm
63  (63/61)
50
R 2" (59,61mm)
92
59
24
65
21,53 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

Schlauchtülle Aussengewinde BSP R x Tülle
Edelstahl Fitting, Qualität AISI 316, V4A

Anschluss:
2fach Aussengewinde
Gewinde:
BSP Rohrgewinde ISO 7-1/EN 10226-1 Aussengewinde konisch (R), nicht selbstdichtend, Abdichtung mit Hanf, Dichtpaste o.ä.
Temperatur:
-20°C bis 200°C
Arbeitsdruck (PN):
20 bar | -20°C bis 40°C
16,5 bar | 100°C
15 bar | 150°C
13,5 bar | 200°C
Material:
Edelstahl AISI 316 | Werkstoff 1.440 | X5CrNiMo 17-12-2 | V4A
DIN:
Dimensionen konform ISO 4144, Anschlussgewinde nach ISO 7/1 (DIN 2999 / BS 21)
Farbe:
Grau Edelstahl





Druck_Temperatur

Die Eckdaten

  • Arbeitstemperatur -20°C bis 200°C
  • Arbeitsdruck PN 20 bar (300 psi)
  • Vermaßung gemäß ISO 4144
  • Whitworth Gewinde, CNC gefräßt gemäß Norm ISO 7/1 (DIN 2999 / BS21)
  • Fertigungsstandard UNE EN 10213-4, Toleranz DIN 1.4408

Edelstahl (nach EN 10020) ist eine Bezeichnung für legierte oder unlegierte Stähle mit besonderem Reinheitsgrad. Stähle, deren Schwefel- und Phosphorgehalt (sogenannte Eisenbegleiter) 0,025% nicht überschreitet.
Die Legierung 316 ist eine Standard Stahlsorte mit Molybdän. Das Molybdän verleiht der Legierung 316 eine bessere Korrosionsbeständigkeit als 304, insbesondere eine höhere Beständigkeit gegen Lochfraß und Spaltkorrosion in chloridhaltigen Medien. Die austenitische Struktur verleiht dieser Legierung einen hohen Grad an Zähigkeit, selbst bei Tiefsttemperaturen, hohe Kriechfestigkeit, Zeitstandfestigkeit und Zugefestigkeit bei erhöhten Temperaturen. Die Legierung ist umgangssprachlich bekannt als V4A Edelstahl.

Edelstahl AISI 316 | Werkstoff 1.4401 (X5CrNiMo17-12-2) (V4A) Anwendung: Laut DVGW-Arbeitsblatt W541 (Grundlage für die Anforderung an Rohre aus nichtrostenden Stählen für die Trinkwasser-Hausinstallation) wird der Stahlwerkstoff 1.4401 am häufigsten eingesetzt.
Einsetzbar in vielfältigen Anwendungen in Chemie-, Petrochemie- und Erdgasindustrie, Lebensmittelindustrie, korrosive Umgebungen und extremen Temperaturen ... Fluidtechnik, Kessel, Kondensatoren, Wäretauscher, Reaktoren ...

DOWNLOADRoHS Bestätigung HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
